About Auto Gate

ABOUT AUTO GATE

What is an automatic remote gate system?

Is a mechanical-electronic solution designed to automate the operation of a perimeter gate. Instead of manually pushing or pulling heavy gates, the system uses an electric motor to handle the movement. Users can trigger the gate from a distance using a remote control, smartphone, or other access control devices.

How it works

The process begins when the Control Panel (the brain of the system) receives a signal from a Transmitter (like a remote). The controller then activates the Electric Motor, which converts electrical energy into mechanical force. This force moves the gate along its track (for sliding gates) or swings it on its hinges (for swing gates).

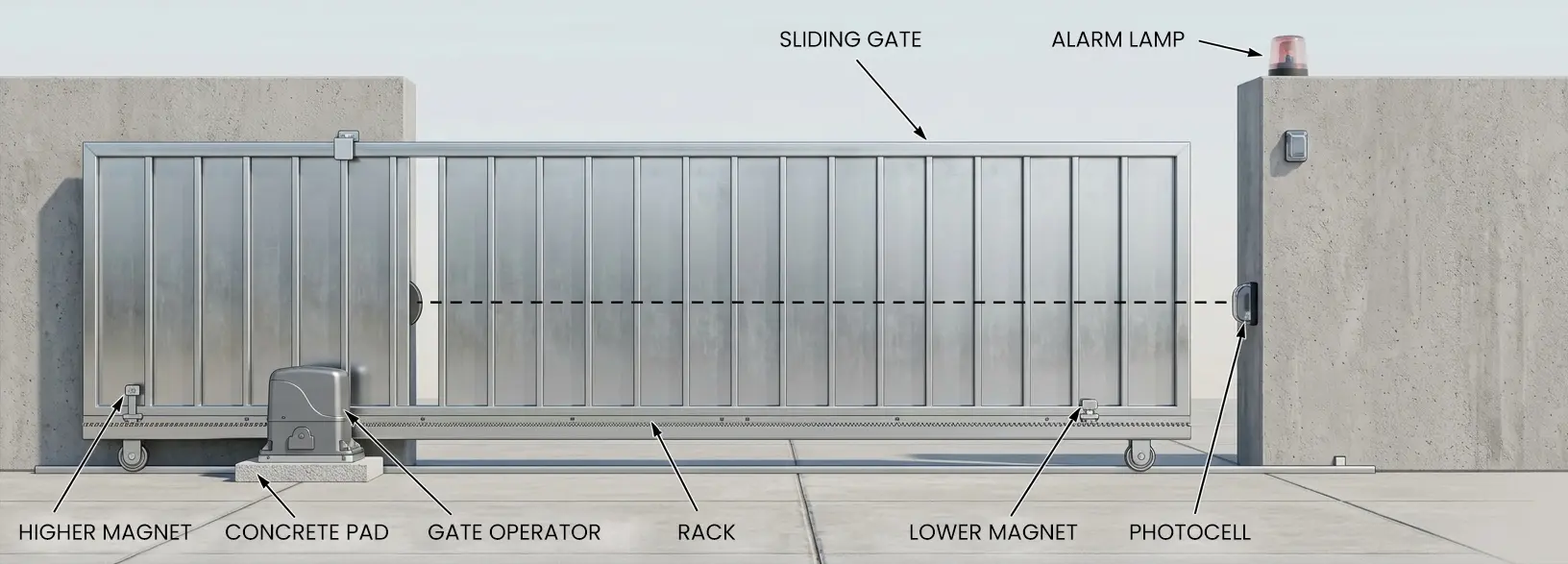

Core components

Here are 6 key components of an automatic remote-controlled gate system that you should know for informed selection and maintenance.

1

Gate Operator

The "heart" of the system that converts electrical energy into mechanical force. Available in AC (high torque for heavy gates) and DC (smooth operation with battery backup).

2

Logic Board

The "brain" of the system. It processes signals from the remote and manages motor speed, safety features, and operation cycles.

3

Gear Rack

The transmission mechanism. Sliding gates use a Gear Rack attached to the gate, while swing gates use a Drive Arm to push or pull the panels.

4

Remote Control

Portable devices used to send encrypted signals to the control board. Modern versions include Smart Control via mobile applications.

5

Photocell

Infrared safety beams that detect obstacles. If the beam is broken while the gate is closing, it triggers the gate to stop or reverse to prevent accidents.

6

Receiver & Antenna

The unit that captures radio frequency signals from the remote. A quality antenna ensures long-range operation, allowing the gate to open before you arrive.

Benefits

Benefits of automatic gate systems

Installing an automatic remote gate system isn't just about modernity. It provides essential benefits in terms of convenience, safety,
and significantly enhances the image of your property, along with the following advantages:

No need to leave your car:

Time-Saving:

Multiple Control Options:

Reduced Crime Risk:

Safe for Children & Pets:

Access Control:

Integrated Locking System:

Forgot-to-Close Protection:

Status Notifications:

CCTV Integration:

Consistent Impact Control:

Weather Resistance:

Elevated Property Image:

Increased Property Value:

Reflecting Taste & Care:

Reduced Physical Burden:

Empowering Independence:

Emergency Accessibility:

Let's discuss your project

Submit a request for a quote so our team can contact you as soon as possible to understand your requirements
Request a quote
